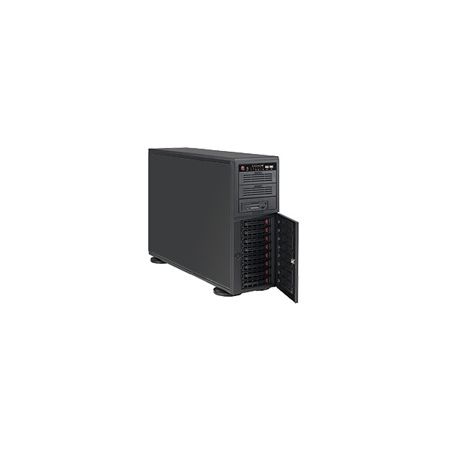

Supermicro SuperWorkstation 7045A-C3B Barebone System Item # 333852
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
333852
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
SuperWorkstation 7045A-C3B Barebone System offers versatility in either a tower or rack mount 4U form factor and support enterprise-class SAS/SCSI/SATA drives.
Product Details
| Item # | 333852 |
| Manufacturer # | 70347 |
| Ethernet Technology | Gigabit Ethernet |
| RAID Levels | 0, 1, 1+0 |
| Processor Supported | Xeon |
| Maximum Power Supply Wattage | 865 W |
| height | 7 in. |
| Additional Information | RAID Level Detail:SATA Controller supports RAID 0, 1, 10 for Linux; SATA Controller supports RAID 0, 1, 5, 10 for Windows; Expansion Slot Detail:1 x PCI Express x16 slot has the bus speed of PCI Express x4 |
| Total Number of USB Ports | 4 |
| Product Line | SuperWorkstation |
| width | 17.2 in. |
| package contents | SuperWorkstation 7045A-C3B Barebone System; 1 x Super X7DCA-3 Motherboard; 1 x 4U SC743TQ-865-SQ Chassis; 1 x SC743 SAS / SATA Backplane; 1 x Front Bezel Filter; 1 x Round Floppy Cable; 2 x 79536-3230,13CM IPASS TO 4 SATA,PB FREE; 1 x Front Panel Ribbon Cable; 1 x 50cm DVD-ROM IDE Cable; 4 x 4 TO 4 PIN FAN POWER CABLE, 210MM; 1 x US POWER CORD 16AWG, PB FREE; 1 x Driver CD; 8 x 1" SCA drive tray; 1 x 92x25 4Pin PWM Fan; 2 x 80x25,4 Pin PWM Fan; 2 x Heatsink / Retention |
| Audio Line In | Yes |
| depth | 25.5 in. |
| Product Name | SuperWorkstation 7045A-C3B Barebone System |
| Number of PCI Express x16 Slots | 2 |
| Rack Height | 4U |
| manufacturer | Supermicro Computer, Inc |
| Front Side Bus | 1333 MHz; 1066 MHz |
| Audio Line Out | Yes |
| weight | 63 lb |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 48 GB |
| Number of Total Memory Slots | 6 |
| controller type | Ultra ATA/100 (ATA-6); Serial ATA/300; Serial Attached SCSI (SAS) |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 4 |
| Memory Standard | DDR2-667/PC2-5300 |
| Number of Power Supplies Installed | 1 |
| Number of Total Expansion Slots | 6 |
| Processor Socket | Socket J LGA-771 |
| Chipset Model | 5100 |
| Number of Total Expansion Bays | 6 |
| Chipset Manufacturer | Intel |
| form factor | Tower |
| Memory Technology | DDR2 SDRAM |
| color | black |
| warranty length | 3-year limited |
| model name | 7045A-C3B |
| Number of PCI Slots | 2 |
| Number of PCI-X Slots | 2 |
| Show More ▾ |
